Top Extrusion Machine Manufacturers in India (2026)

Choosing the right extrusion machine manufacturers in India decides your cable quality, output and running cost for years. This guide ranks the top extrusion machine manufacturers for 2026 — from India’s leading custom builder to the global names it competes with — so you can match the right supplier to your product, scale and budget.

Cable extrusion line at Sai Extrumech factory in India

1. Sai Extrumech Pvt. Ltd. (Our Top Pick)

Base: Faridabad, India. With 25+ years of engineering, Sai Extrumech designs and builds custom wire and cable extrusion lines — power, building wire, solar, optical fibre, submersible and Sioplas triple-layer HT-XLPE lines up to 33 kV — along with precision crossheads, screws and barrels and lab extruders. Everything is machined in-house, so tooling and lines are matched exactly to your cable specification.

Why it’s the top pick: full customization, in-house tooling, faster local support and spares, and strong value versus imported lines — with exports to the UAE, UK, South Africa, Bangladesh, Nepal and Sri Lanka, and R&D collaborations with IIT Delhi and BITS Pilani. Best for manufacturers who want a tailored, well-supported line without European price tags.

2. Davis-Standard

Base: USA. A global heavyweight in extrusion systems spanning wire and cable, plastics and medical tubing. Davis-Standard is known for very high-throughput, highly automated lines. Best suited to large multinationals with big budgets and high-volume, standardized production.

3. Troester GmbH

Base: Germany. A specialist in rubber and cable extrusion, including CV (continuous vulcanization) lines for high- and extra-high-voltage cable. A strong choice for rubber cable and utility-scale HV/EHV projects where budget is secondary to capability.

4. KraussMaffei

Base: Germany. A major plastics-processing group with broad extrusion and compounding technology, including pipe and profile. Best for compounders and plastics processors rather than dedicated cable makers.

5. Battenfeld-Cincinnati

Base: Austria/Germany. A leading name in pipe and profile extrusion (PVC, PE, PP). The right partner if your focus is pipe and profile rather than wire and cable.

6. Reifenhäuser

Base: Germany. A global leader in blown and cast film and sheet extrusion. Best for film, packaging and sheet producers — a different segment from cable, but frequently searched alongside “extrusion machine manufacturers.”

Extruder crosshead applying insulation on a cable

Comparison of the Top Extrusion Machine Manufacturers

ManufacturerBaseSpecialtyBest For
Sai ExtrumechIndiaWire & cable extrusion lines, crossheads, screws & barrelsCustom cable/wire lines & tooling at strong value
Davis-StandardUSAWire, cable, plastics & medical extrusion systemsVery large-scale, high-budget projects
TroesterGermanyRubber & high-voltage cable (CV) linesRubber and HV/EHV cable production
KraussMaffeiGermanyPlastics extrusion & compoundingCompounding and pipe/profile plastics
Battenfeld-CincinnatiAustria/GermanyPipe & profile extrusionPVC/PE pipe and profile lines
ReifenhäuserGermanyBlown & cast film, sheet extrusionFilm and packaging production

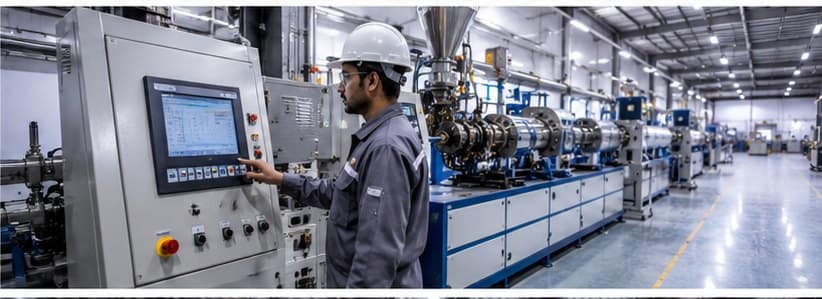

Engineer operating a cable extrusion line control panel

How to Choose an Extrusion Machine Manufacturer

The “best” manufacturer depends entirely on what you produce. Weigh these factors before you commit:

  • Product match — cable, pipe, film and tubing need different lines and tooling. Pick a maker whose core specialty is your product.
  • Customization — can they tailor the screw, crosshead and line to your exact cable spec, or only sell standard models?
  • In-house tooling — makers who machine their own crossheads and screws control quality and lead time.
  • Support & spares — local service and quick spare-parts availability matter more than brochure specs. This is where Indian suppliers often beat imports.
  • Total cost — factor in price, lead time, installation, training and running cost, not just the sticker price.

For most wire and cable producers in India, a custom line from a well-supported local manufacturer delivers the best balance of quality, cost and service. Explore the full range from Sai Extrumech, extrusion machine manufacturers in India, or see our complete product range.

Top Extrusion Machine Manufacturers: Key Takeaways

The top extrusion machine manufacturers each lead in their own segment, from large-scale European lines to custom Indian builders. When comparing the top extrusion machine manufacturers, match the supplier to your product, scale and budget rather than brand alone. For the process they all serve, see extrusion.

Frequently Asked Questions

Who is the best extrusion machine manufacturer in India?

Sai Extrumech is among the leading extrusion machine manufacturers in India, with 25+ years building custom wire and cable extrusion lines, crossheads, and screws and barrels in Faridabad, plus in-house tooling and exports to several countries.

Should I buy from an Indian or a European manufacturer?

It depends on scale and budget. European names like Davis-Standard and Troester lead on very large, high-throughput lines but at premium prices and longer lead times. Indian manufacturers such as Sai Extrumech offer custom lines, faster local support, easier spares and strong value for most wire and cable production.

What types of extrusion machines are there?

Extrusion machines are broadly single-screw or twin-screw, and are configured for specific products: wire and cable lines, pipe and profile lines, film and sheet lines, and tubing lines. The screw, barrel and die tooling are matched to the material and product.

How much does an extrusion machine cost?

Cost varies widely with machine type, size, output and level of automation, so there is no single figure. The best approach is to share your cable or product specification with the manufacturer and request a tailored quote.

What should I look for in an extrusion machine manufacturer?

Look for genuine customization to your product, in-house tooling (crossheads, screws and barrels), reliable after-sales support and spare-parts availability, proven references, and the ability to supply a complete line or individual machines.

Conclusion

The top extrusion machine manufacturers each lead in their own segment — Davis-Standard and Troester on large-scale and HV cable, KraussMaffei, Battenfeld-Cincinnati and Reifenhäuser across plastics, pipe and film. For custom wire and cable lines with in-house tooling, local support and genuine value, Sai Extrumech is our top pick for 2026. Share your cable specification and our team will recommend the right line.

Get a Custom Extrusion Machine Quote

Curious about market size and growth? See our India wire & cable industry statistics (2026).

how-to-set-up-a-wire-and-cable-factory-1

How to Set Up a Wire and Cable Factory

Starting a wire and cable plant feels huge, but the path breaks into clear steps. Below we walk you through every phase, from market checks to the first run of your extrusion line.

Step 1: Conduct Feasibility Study and Market Analysis

First, verify that demand exists for the cables you plan to make. Look at upcoming 5G roll‑outs, renewable‑energy grid upgrades and electric‑vehicle power‑train needs. Industry analyses note that high‑voltage cables for offshore wind are a major driver of new production capacity1. Match that macro trend with the specific cable types you can produce, low‑smoke halogen‑free, XLPE, fiber‑optic, or specialty polymers.

Next, size the market. Use the latest wire‑and‑cable compounds forecast, the global market is projected at $16 billion in 2026 with a 5 % CAGR2. Translate those numbers into a volume target for your plant. If you aim for 10 % of a regional market, that means roughly 1.6 million kg of compound per year.

Run a cost‑benefit model. Include raw‑material costs, energy use, labor rates, and capital outlay for extrusion equipment. Remember that energy is the biggest expense in extrusion; a 25 % drop in extruder power can shave millions off the total cost.

Finally, draft a risk register. List raw‑material price swings, regulatory changes (like the EU’s PVC ban), and supply‑chain bottlenecks. Assign mitigation steps, long‑term resin contracts, local spare‑parts inventory, or flexible machine design.

By the end of this step you should have a solid business case, a target product mix, and a clear view of the financial upside.

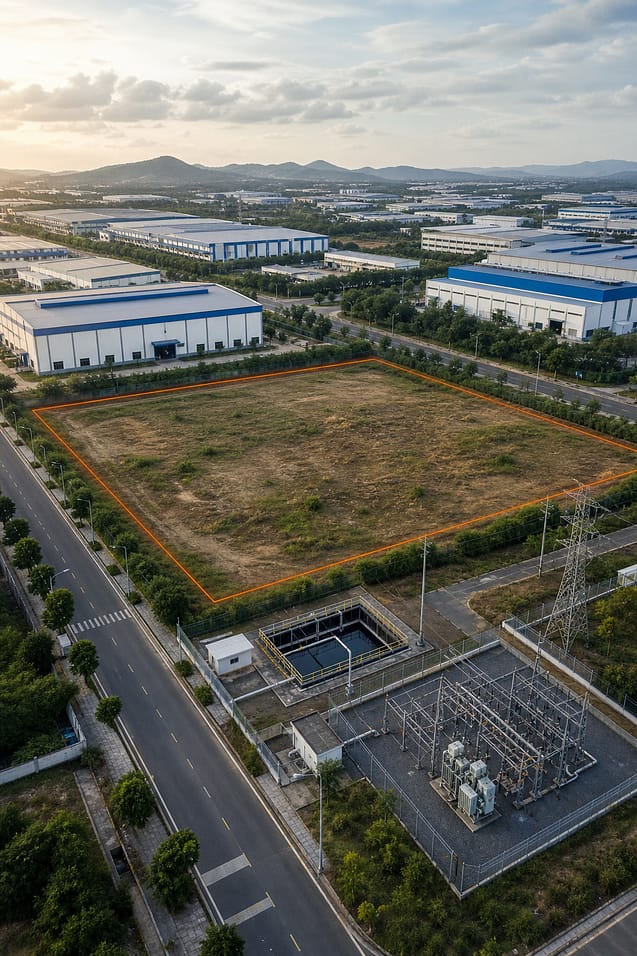

A realistic aerial view of an industrial park with a clear plot marked for a new wire and cable factory, showing surrounding roads and utilities, Realism style

Step 2: Secure Land, Permits, and Regulatory Approvals

Choose a site that balances logistics and expansion room. Proximity to raw‑material hubs reduces transport cost, while easy highway or rail access eases finished‑goods shipping. Check zoning maps , industrial zones are a must.

Apply for the required permits. In India, you will need a Factory License from the appropriate state authority, an Environmental Clearance from the relevant environmental ministry, and a consent from the local pollution control agency for emissions. Each authority has a checklist; keep a spreadsheet to track submission dates and comments.

Don’t overlook fire safety and electrical clearance. Cable plants handle high‑temperature melt zones, so a fire‑hazard analysis is mandatory. Engage a local consultant who knows the state‑level forms , they can speed up approval by a few weeks.

Once permits are in hand, negotiate land lease or purchase terms. Look for a clause that allows future expansion of at least 20 % of the built‑up area.

By now you should hold a signed land agreement, a complete permit package, and a clear timeline for ground‑breaking.

Step 3: Design Production Layout and Select Machinery

The plant layout determines flow, safety and future upgrades. Sketch a linear line: raw‑material feed → extruder → crosshead → cooling → spark test → haul‑off → take‑up. Keep each station at least 1.5 m apart to allow maintenance aisles.

Choose the right extruder. Modern ROEX extruders cut energy use by about 25 % compared to older models and handle a wide material range, from PVC to Teflon3. Their compact motor gearbox delivers stable melt pressure, which means fewer product defects.

Pair the extruder with a crosshead that matches your cable profile. A manual‑centre crosshead offers flexibility for multiple sizes, while a fixed‑centre version gives higher speed for a single product line. Learn more about crosshead selection in our guide What is a Crosshead in Cable Extrusion?.

Install sensors for temperature, pressure and speed. The Custom Cable Extrusion Line from Sai Extrumech lists twelve IoT‑enabled functions , the deepest automation set in the market4. Those sensors feed a PLC that can run recipe‑based setups, reducing changeover time.

Plan utilities carefully. Water‑cooled feeding sections need a closed‑loop system to avoid contamination. Electrical supply should be three‑phase, 415 V, with a backup generator for critical equipment.

By the time this step is done you have a CAD layout, a bill of equipment, and a list of vendors ready for quotation.

Step 4: Install Extrusion Lines and Support Equipment

Start with the foundation. Concrete slabs must be level to within 2 mm across the entire line length; any tilt causes uneven cooling and wall thickness variation.

Place the extruder first. Align the screw axis with the downstream crosshead using laser markers. A mis‑aligned screw creates surging and can damage the barrel.

Next, fit the crosshead and cooling trough. Connect the water‑cooling loops, then bleed air to avoid pockets that could cause hot spots.

Install the haul‑off unit, the motorised pull‑unit that draws the cable out of the line. It controls line speed, draw‑down ratio and tension. Refer to the equipment sizing guide to select the appropriate capacity for your product range.

Fit the take‑up system and any post‑extrusion equipment such as cable testing stations, marking devices and reel winding machines. Verify that all PLC I/O points match the wiring diagram from the equipment supplier.

Run a dry‑run with no polymer. Check for vibration, confirm that all safety interlocks engage, and record power draw at each station.

A realistic photo of a cable extrusion line under installation, showing extruder, crosshead, cooling trough and haul‑off, Realism style

When the line passes the dry‑run, you have a mechanically sound installation ready for material.

Step 5: Commission, Test, and Optimize Operations

Load a small batch of test compound. Start the extruder at low speed and monitor melt temperature, pressure and screw torque. Adjust the heater zones until the melt temperature is stable within ±2 °C.

Run the first full‑speed trial. Measure cable outer diameter, wall thickness and concentricity. If concentricity is off, fine‑tune the crosshead screws while the line runs. Our guide on concentricity explains the exact adjustment steps.

Validate the spark‑test results. The test should detect any insulation defects before the cable leaves the line. Record the pass rate , a healthy line shows >98 % pass on the first pass.

Use the line’s IoT sensors to capture key performance indicators. Compare actual output to the recipe‑based target. If output falls short, look at screw wear or barrel temperature drift. Early‑stage wear shows up as higher torque or a rise in melt temperature.

Key Takeaway: Real‑time data lets you catch a drift before it becomes a scrap issue.

Finally, train the operators. Provide a standard operating procedure that covers start‑up, changeover, and shutdown. Keep a spare‑parts kit for critical components , Sai Extrumech guarantees days‑long coverage for 95 % of parts, reducing downtime.

By the end of commissioning you should see stable product quality, meet the target throughput, and have a maintenance plan in place.

FAQ

What are the first things to check before buying extrusion equipment?

The first check is the material range you need , make sure the machine can melt PVC, XLPE, TPE and any specialty polymers. Next, verify the automation features; a line with sensor‑driven control saves changeover time. Finally, confirm spare‑parts availability to avoid long downtimes.

How long does it take to get the necessary permits for a cable factory in India?

Permits typically take 3‑6 months, depending on the state and the completeness of your application. Start early and keep a checklist for the Factory License, Environmental Clearance and the relevant environmental authority consent.

Can I run both power and data cables on the same extrusion line?

Yes, you can use a modular line that swaps crossheads and dies between runs. The key is to have interchangeable feeding sections and a PLC that stores separate recipes for each cable type.

What energy‑saving options exist for extrusion lines?

Modern extruders like the ROEX series use a compact motor gearbox that reduces power draw by up to 25 % compared to older models. Adding variable‑frequency drives to pumps and fans also cuts consumption.

How often should I perform maintenance on the screw and barrel?

Inspect the screw and barrel at least once a year for high‑volume lines, and every six months if you process abrasive compounds. Look for wear signs such as increased torque, higher melt temperature or surface scoring.

Ready to move forward? Explore our full guide on selecting the best cable extrusion line for your plant and get a free consultation.

Conclusion

We recommend starting with a modular extrusion line from Sai Extrumech , it offers the deepest automation and fast spare‑parts support. Contact the team today to run a feasibility review and begin your factory build.

Ready to put this into practice? Sai Extrumech Pvt. Ltd. was built for exactly this.

how-to-maintain-an-extruder-screw-and-barrel-1

How to Maintain an Extruder Screw and Barrel – Step‑by‑Step Guide

Production stops when a screw or barrel wears out, and downtime hurts your bottom line. Follow these five steps to keep your extrusion line humming and avoid costly surprises.

Step 1: Safety Precautions & Equipment Shutdown

First, lock out power and hydraulic lines. Tag the machine so no one can restart it by mistake. Wear heat‑resistant gloves, safety goggles, and steel‑toe boots , the barrel can be over 200 °C.

Next, purge the resin. Run a suitable purging material until the melt runs clear. This softens any residue that would otherwise glue the screw to the barrel when it cools.

Once the melt is clear, let the barrel stay hot while you disconnect the electrical supply. A lock‑out/tag‑out (LOTO) procedure documented on the plant’s safety manual helps you stay compliant.

Finally, verify that all cooling water lines are shut off and that the emergency stop button is engaged. With the machine fully isolated, you can move on to the next step.

Step 2: Disassembly of Screw and Barrel

Start by removing the die, head, and any adapters that block access to the screw. Mark the orientation of the screw and coupling with a metal tag, this saves time when you re‑assemble.

Unbolt the coupling or gearbox at the screw shank. Use the recommended tool set to the manufacturer’s specification to avoid over‑tightening.

With the front end clear, support the screw using appropriate lifting equipment. Push the screw forward from the shank end; most machines have a built‑in extractor that slides the screw out through the discharge side.

Watch for any resistance. If the screw sticks, keep the barrel hot and apply a gentle, even force, forcing it can gouge the barrel bore.

When the screw clears the barrel, lower it onto a padded steel table. Avoid bare concrete; a soft surface prevents nicking the precision flights.

Pro Tip: Use a suitable scraper to remove any residual resin from the barrel before it cools. This makes the next cleaning step easier.

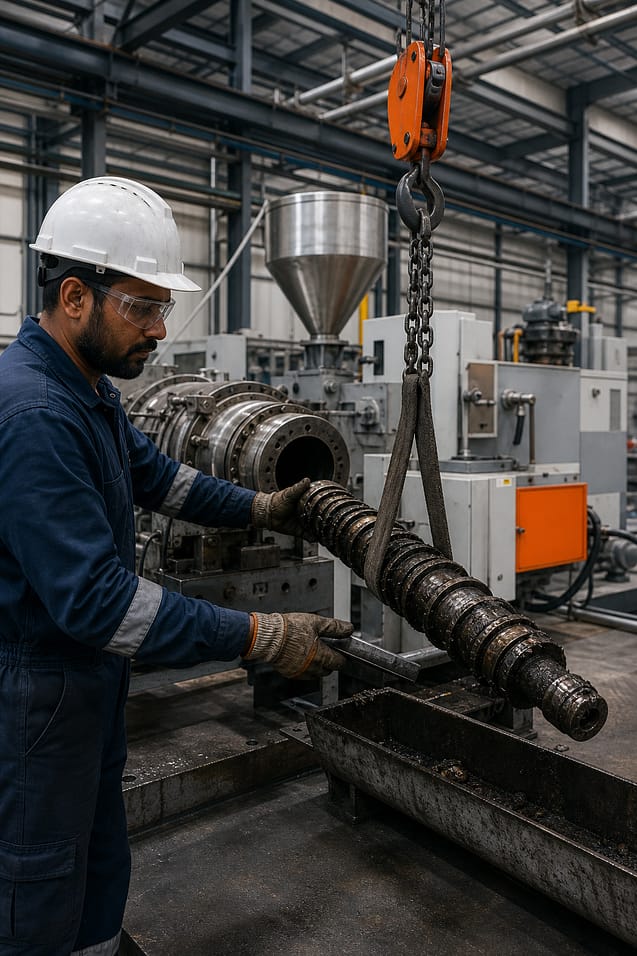

A photorealistic view of a technician using a hoist to extract a hot extrusion screw from a barrel in an industrial setting, showing safety gear and the machine background.

Our team at Sai Extrumech often sees customers skip the marking step and then waste hours re‑aligning the screw. A simple tag saves that trouble.

Step 3: Cleaning and Inspection

Now the screw and barrel are ready for a deep clean. Load a small amount of cleaning resin through the discharge port. Run the machine until the extrudate matches the resin’s colour and gloss.

Stop the rotation, open the die head, and manually brush the flights with a suitable brush. The brush removes carbon deposits without scratching the steel.

Pull the screw out again and inspect it under bright light. Look for rounded flight tips, scoring, or pitting. Measure the outer diameter at the feed, compression, and metering zones with an appropriate measuring tool.

For the barrel, insert an appropriate measuring tool and record the inner diameter at several points. Compare these numbers with the OEM specifications. Any noticeable gap may indicate wear.

According to Wikipedia’s overview of plastic extrusion, maintaining the correct screw‑to‑barrel clearance is critical for melt flow and energy efficiency.

After inspection, rinse the barrel with a low‑viscosity cleaning resin and dry it with filtered air. Re‑install the die head only after the barrel is completely free of debris.

Step 4: Reassembly and Alignment

Begin by cleaning both the screw shank and the coupling bore. Any grit left behind can cause mis‑alignment later.

Place the screw back into the barrel slowly, watching the alignment marks you made earlier. Check the alignment to confirm the screw runs straight along its entire length.

If misalignment is observed, rotate the screw a few degrees and re‑check. Small adjustments are easier than re‑doing the whole pull.

Secure the coupling according to the machine’s service manual specifications. Over‑tightening can crush the screw threads; under‑tightening lets the screw slip.

Check the clearance again using an appropriate measuring tool. The gap should be within the manufacturer’s recommended clearance range.

Finally, reinstall the die, head, and any adapters. Verify that all coolant lines are re‑connected and that there are no leaks before you power up.

A realistic illustration of a technician aligning an extrusion screw inside a barrel using a measurement device, showing the measurement readout and safety equipment.

When you need expert advice on alignment, Sai Extrumech’s support team can walk you through the process with detailed drawings.

Step 5: Preventive Maintenance & Monitoring

A solid preventive‑maintenance (PM) plan keeps wear in check. Record the screw‑to‑barrel gap each time you pull the screw. Trending the data helps you predict when a part will need replacement.

Monitor key process indicators daily: motor amperage, melt temperature, and head pressure. A gradual rise in any of these values often signals increasing friction from wear.

Schedule a full inspection at least once a year for standard polymers, and more frequently for abrasive compounds. The Sai Extrumech wear‑prevention guide suggests tightening the interval when you run filled or corrosive resins.

Use a suitable purging material during color or material changeovers. It helps reduce cleaning time and resin buildup on barrel walls.

When the gap exceeds the recommended upper limit, plan a shutdown for a barrel re‑sleeve or a screw rebuild. Early action prevents the screw from grinding the barrel, which can cause delamination or surface defects in the extruded product.

Document every maintenance event in a record-keeping system. Having a history lets you spot patterns and justify spare‑part orders to management.

FAQ

How often should I pull the screw for inspection?

We recommend pulling the screw at least once a year for typical polymer runs, and at shorter intervals for abrasive or filled compounds. More frequent checks help catch wear before it hurts output.

What safety gear is mandatory during maintenance?

Heat‑resistant gloves, safety goggles, steel‑toe boots, and other required protective equipment are essential. Proper lockout procedures are also required to keep the machine from restarting.

Can I use a regular drill to clean the barrel?

No, a drill can gouge the barrel bore. Use an appropriate brush or a soft‑bristle scraper designed for extrusion equipment to avoid damaging the surface.

What is the ideal screw‑to‑barrel clearance?

The industry standard clearance is a very small fraction of the barrel diameter. Staying within this range ensures smooth melt flow and reduces energy consumption.

How does monitoring motor amperage help?

Rising amperage at a constant screw speed usually means the screw is working harder due to increased friction, which often points to wear inside the barrel.

Where can I find detailed specifications for my extruder?

Check the OEM’s service manual or the Sai Extrumech selection guide for the exact dimensions and tolerances of your screw and barrel.

Conclusion

Follow these five steps and you’ll keep your extrusion line running smoothly while extending component life. For deeper insights, explore our Screw and Barrels resource page and start building a strong preventive‑maintenance schedule today.

Ready to put this into practice? Sai Extrumech Pvt. Ltd. was built for exactly this.

Grooved Feed Extruder Working Principle

Grooved Feed Extruder Guide: Working Principle, Applications & Selection

Grooved Feed Extruder: Working Principle, Applications & Selection Guide

Walk through a modern HDPE pipe plant in Europe, and you’ll notice that grooved feed extruders are often the standard choice. Visit many wire, cable, or pipe extrusion facilities in South Asia or North America, and smooth-bore extruders are still widely used. Both designs are proven technologies capable of producing high-quality products. The real question isn’t which one is “better”—it’s which one is better suited to your material, product, and production goals.

A grooved feed extruder wasn’t developed to replace every smooth-bore machine. It was designed to solve specific process limitations that become noticeable when processing high-viscosity polymers or applications requiring stable output under high die pressure. Understanding where this technology excels—and where it doesn’t—is far more valuable than simply comparing throughput figures.

In this guide, we’ll explain how a grooved feed extruder works, why feed grooves improve solids conveying, which materials benefit the most, where smooth-bore machines still make more sense, and the practical engineering factors you should evaluate before selecting either design.

What Is a Grooved Feed Extruder?

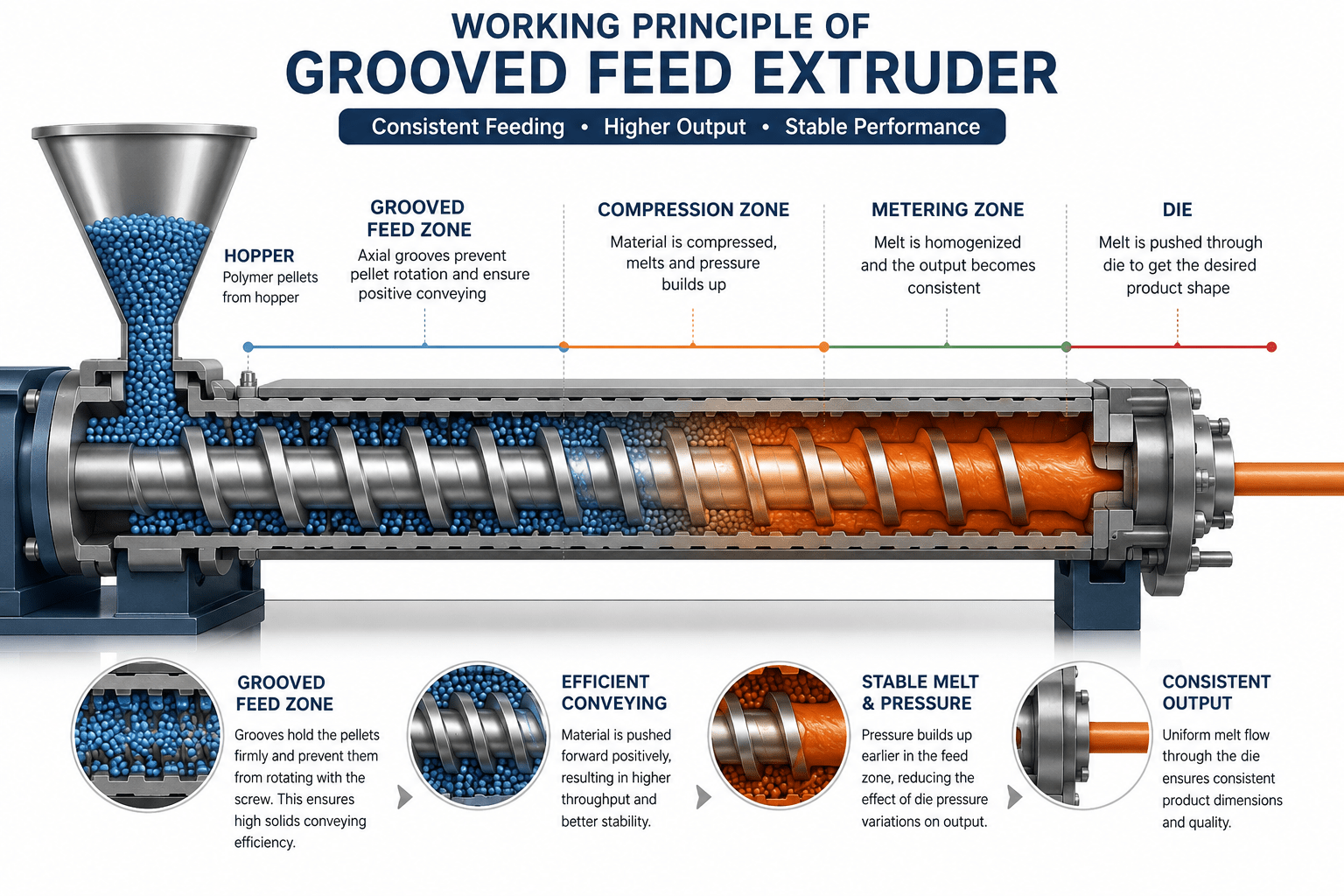

A grooved feed extruder is a single-screw extruder that uses axial grooves machined inside the feed section of the barrel, just below the hopper. These grooves prevent polymer pellets from rotating together with the screw, allowing the screw flights to push the material forward more efficiently. The result is higher solids conveying efficiency, improved throughput, and output that is far

Why Standard Extruders Struggle with High-Viscosity Polymers

To understand why grooved feed technology was developed, it’s important to first understand how a conventional smooth-bore extruder feeds material.

In a standard single-screw extruder, polymer pellets enter through the hopper and fall into the feed section of the barrel. The inside surface of this section is smooth, so the pellets move forward mainly because of the difference in friction between the barrel wall and the rotating screw.

When the pellets grip the barrel wall more strongly than the screw surface, the screw flights can push them forward into the compression zone. This friction-based conveying system works well for many common thermoplastics and has been the industry standard for decades.

However, this approach has practical limitations.

Reduced Solids Conveying with High-Viscosity Polymers

High-viscosity materials such as HMW-HDPE offer lower friction in the feed zone than standard polyethylene grades. Instead of moving efficiently towards the screw, some pellets begin rotating with it.

As a result:

  • Solids conveying becomes less efficient.
  • Throughput decreases.
  • Output becomes less consistent.
  • Operators often need to increase screw speed to maintain production.

Although increasing screw speed raises output, it also increases shear heating and energy consumption, making process control more difficult.

Output Drops as Die Pressure Increases

Another limitation of smooth-bore extruders is their sensitivity to back pressure.

During extrusion, the polymer melt encounters resistance while passing through the screen pack, breaker plate, crosshead, or die. As this resistance increases, pressure builds inside the screw channel.

Part of this pressure works against the forward movement of the material.

In practical terms, higher die pressure often results in:

  • Reduced throughput
  • Higher melt temperature
  • Increased motor load
  • Less stable production

This effect becomes more noticeable in applications such as:

  • HDPE pressure pipe
  • Thick-wall power cable insulation
  • Building wire insulation
  • Large conduit extrusion
  • Products requiring fine filtration through multiple screen packs

For manufacturers producing these products, maintaining stable output becomes increasingly challenging as production speeds increase.

How Grooved Feed Technology Actually Works

Grooved Feed Extruder Working Principle

The main difference between a grooved feed extruder and a smooth-bore machine starts in the feed section of the barrel.

In a smooth-bore design, polymer pellets are free to rotate along with the screw if friction is not sufficient. This makes the feeding process dependent on material behavior, temperature, and surface interaction — all of which can vary during production.

In a grooved feed extruder, the feed section of the barrel is machined with multiple axial grooves. These grooves grip the polymer pellets and prevent them from rotating with the screw.

Instead of slipping and rotating, the material is held in place while the screw continues to rotate underneath it. This creates a more direct, mechanical pushing action that forces the polymer forward into the compression zone.

A simple way to understand this is:
instead of trying to move loose, rotating particles, the system pushes a locked mass of material forward.

This change turns the feeding process from friction-based movement into positive mechanical conveying.

Because of this, the performance of the extruder becomes much less dependent on material friction or changing process conditions.

One of the biggest advantages of this mechanism is that pressure begins building much earlier — directly in the feed zone — instead of gradually developing along the screw length.

As a result, variations in die pressure have far less impact on output stability. This is why grooved feed systems are widely used in applications where consistent production is more important than flexibility.

Applications Where Grooved Feed Extruders Work Best

Grooved feed extruders deliver the best performance in applications where material viscosity is high and process stability is critical.

One of the most common uses is in HDPE pressure pipe extrusion. In this application, the die creates significant back pressure, and even small fluctuations can affect wall thickness. Grooved feed systems help maintain a steady output, which improves dimensional consistency over long production runs.

They are also widely used in power cable and building wire insulation lines. In these processes, maintaining uniform insulation thickness is extremely important. Because grooved feed extruders reduce output variation caused by pressure changes, they help achieve better product consistency and lower material waste.

In conduit and duct manufacturing, where continuous extrusion is required for long lengths, stable output plays a key role in maintaining uniform product dimensions. Grooved feed technology helps ensure that production remains smooth even when operating conditions vary.

For high-viscosity polyethylene grades such as HMW-HDPE, grooved feed systems offer a clear advantage because they improve solids conveying efficiency in the feed zone. This results in more stable melting behavior and better overall process control.

In simple terms, grooved feed extruders are most effective in applications where:
stable output, consistent product quality, and high production efficiency are more important than material flexibility.

Grooved Feed vs Smooth Bore (Practical Difference in Real Production)

At a practical production level, the difference between grooved feed and smooth-bore extruders comes down to how consistently they handle changing process conditions.

A smooth-bore extruder relies mainly on friction between the polymer, screw, and barrel to move material forward. Because of this, its performance can vary when material properties, temperature, or die resistance change during production. In stable conditions, it works reliably, but its output is more sensitive to small variations in the process.

A grooved feed extruder, on the other hand, uses mechanical gripping in the feed section to control material movement. The grooves prevent pellet rotation and ensure that material is pushed forward more consistently by the screw. This makes the feeding process more stable and less dependent on friction or material behavior.

In real production terms, this means grooved feed systems are better suited for high-output, continuous processes where consistency is critical — such as pipe extrusion or cable insulation. Smooth-bore machines are more flexible and handle a wider range of materials, including regrind, blends, and compounds, where process conditions are not always consistent.

Another key difference is sensitivity to pressure changes. In smooth-bore machines, changes in die pressure directly affect output. In grooved feed systems, this effect is significantly reduced, which helps maintain stable product dimensions over long production runs.

In simple terms, grooved feed extruders prioritize stability and output efficiency, while smooth-bore extruders prioritize flexibility and material versatility.

When Smooth-Bore Extruders Are Still the Better Choice

Although grooved feed extruders offer clear advantages in high-output and high-viscosity applications, they are not the right solution for every process. In many real-world extrusion setups, smooth-bore machines still deliver better overall performance depending on the material and production requirements.

Smooth-bore extruders are generally preferred when processing mixed materials or regrind. Since their feeding system is based on friction rather than mechanical gripping, they handle variations in pellet shape, size, and density more effectively. This makes them more stable in processes where raw material consistency is not fully controlled.

They are also widely used in compounding and masterbatch production. In these applications, proper mixing and dispersion of additives are more important than pure throughput. Smooth-bore designs allow better melting balance and longer residence time, which helps achieve uniform blending of materials.

For soft polymers and elastomers, smooth-bore machines perform more predictably because the material does not rely on groove-based mechanical feeding. Instead, it moves steadily under controlled friction conditions without risk of feeding instability.

In low back-pressure applications, where the die resistance is minimal, grooved feed systems do not provide a significant performance advantage. In such cases, the higher energy requirement of grooved feed machines may not be justified.

Flexible production environments also favor smooth-bore extruders. When a plant needs to switch frequently between different polymers or product types, smooth-bore systems offer better adaptability and easier process control.

In summary, smooth-bore extruders remain the better choice when material flexibility, mixing quality, and process versatility are more important than maximum output and feed stability.

Is Grooved Feed Right for Your Process? (Final Decision Guide)

Choosing between a grooved feed and a smooth-bore extruder ultimately depends on your material behavior and production priorities rather than just output numbers.

A simple way to evaluate this is to ask two key questions.

First, are you processing a high-viscosity polyolefin such as HMW-HDPE in a consistent, well-controlled pellet form?
Second, does your application involve significant die pressure where output stability directly affects product quality?

If the answer to both questions is yes, then a grooved feed extruder is likely to deliver better performance. It will offer more stable output, lower melt temperature, and improved process efficiency in continuous production environments. In such cases, the higher investment in drive power, cooling systems, and machine design is generally justified by long-term production benefits.

However, if your process involves mixed materials, regrind usage, frequent grade changes, or compounding operations, a smooth-bore extruder will usually be the more practical choice. Its flexibility and tolerance to material variation make it better suited for dynamic production environments where consistency of raw material cannot always be guaranteed.

The most common mistake in extrusion system selection is focusing only on theoretical output gains without considering real production conditions. A grooved feed system performs exceptionally well only when the material and process align with its design principles.

At Sai Extrumech, extrusion systems are not selected in isolation. Feed system design, screw geometry, barrel configuration, and cooling systems are engineered as a complete matched solution based on the polymer type and application requirement. This ensures stable performance across industries such as power cable, building wire, and industrial extrusion lines.

If you’re evaluating a new extrusion line or troubleshooting an existing process, the right system selection can significantly improve efficiency, reduce waste, and stabilize production output.

Need Expert Help Selecting the Right Grooved Feed Extruder?

Choosing the right extrusion system requires more than comparing machine specifications. Factors such as polymer type, throughput requirements, screw geometry, feed system design, die pressure, and cooling configuration all influence long-term production efficiency and product quality.

At Sai Extrumech, we design and manufacture customized extrusion solutions for wire & cable, HDPE pipe, medical tubing, and industrial plastic extrusion applications. Our engineering team works closely with manufacturers to recommend the most suitable extrusion system based on their production goals and material requirements.

Whether you’re planning a new extrusion line or upgrading an existing one, our experts can help you select the right grooved feed extruder, screw & barrel configuration, and extrusion tooling for consistent, high-performance production.

👉 Explore Our Extrusion Solutions
👉 Contact Our Engineering Team for Expert Consultation

Frequently Asked Questions (FAQ)

What is the main advantage of a grooved feed extruder?

The main advantage of a grooved feed extruder is its ability to provide stable and efficient solids conveying. Because the feed section uses grooves to prevent pellet rotation, the system delivers more consistent output even under high die pressure conditions.

Does a grooved feed extruder increase output?

Yes, but only in suitable applications. In high-viscosity polymers like HMW-HDPE and high back-pressure processes, grooved feed extruders can significantly improve output stability and efficiency. However, in low-pressure or mixed-material applications, the benefit may be limited.

Can grooved feed extruders handle all types of polymers?

No. They are best suited for high-viscosity polyolefins processed in consistent pellet form. Materials like regrind, soft polymers, elastomers, and PVC may not perform well in grooved feed systems due to feeding instability or overheating risks.

Why does a grooved feed extruder need strong cooling in the feed section?

The grooved feeding mechanism only works when the polymer remains in solid form. If the material starts melting in the feed zone, it loses grip inside the grooves, which reduces conveying efficiency and leads to unstable output.

Is a grooved feed extruder better than a smooth-bore extruder?

Neither is universally better. Grooved feed extruders are better for high-output, stable production with consistent materials, while smooth-bore extruders are better for flexible processing, mixing applications, and variable raw materials

What is the biggest mistake when selecting an extruder?

The biggest mistake is choosing a machine based only on output numbers without considering material behavior and process conditions. The correct selection depends on polymer type, die pressure, and production consistency requirements.

Do grooved feed extruders consume more power?

Yes, generally they require higher drive torque compared to smooth-bore machines. However, this is compensated by improved output stability and higher production efficiency in suitable applications.

Where are grooved feed extruders most commonly used?

They are widely used in HDPE pipe extrusion, power cable insulation, building wire production, and other high-output continuous processes where stable flow and dimensional consistency are critical.
how-does-plastic-extrusion-work-1

How Does Plastic Extrusion Work? An In‑Depth Guide

The plastic extrusion process turns small polymer pellets into long, uniform shapes that appear in almost everything — power cables, water pipes, medical tubing and window frames. This guide explains how plastic extrusion works step by step: what happens inside the machine, the key components of an extrusion line, the difference between single- and twin-screw extruders, and where the process is used.

What Is Plastic Extrusion?

Plastic extrusion is a continuous manufacturing method that forces melted thermoplastic through a shaped die to create a profile with a fixed cross-section. Because the die sets the shape, a single line can run for hours producing identical pipe, sheet, film or wire insulation. The process handles PVC, HDPE, ABS, nylon and many other polymers, so engineers choose the material that fits the job’s temperature, strength and chemical-resistance needs.

The melt stays fluid for only seconds, so the machine must heat, mix and pressurise the plastic precisely. A single-screw extruder does this in a simple, low-cost design; a twin-screw version adds mixing power for compounds with fillers or flame-retardants. For a neutral overview of the underlying principle, see Wikipedia’s article on extrusion.

Cable extrusion line at Sai Extrumech factory in India

Key Components of an Extrusion Line

Every extrusion line shares a handful of core parts working in sequence:

  • Hopper — stores raw pellets and feeds them into the barrel by gravity
  • Barrel & screw — a heated barrel with a rotating screw (or twin screws) that conveys, melts and pressurises the polymer
  • Breaker plate / screen pack — filters contaminants and builds even back-pressure before the die
  • Die (and crosshead for cable) — shapes the melt into the final profile; on a cable line a crosshead applies insulation around the moving conductor
  • Cooling — a water bath for pipe and cable or air knives and chill rolls for film and sheet
  • Haul-off & cutter — a caterpillar haul-off pulls the solidified product at a constant speed and a cutter trims it to length

The screw is the heart of the line. Abrasive fillers and tight clearances wear it over time, which is why screw and barrel wear is one of the most important maintenance issues in any extrusion plant.

Extruder crosshead die forming cable insulation

The Extrusion Process, Step by Step

  1. Feeding — pellets drop from the hopper into the feed zone; gravity and screw rotation push them forward.
  2. Melting — barrel heaters and shear friction melt the polymer as it moves through the heating zones under tight temperature control.
  3. Mixing & homogenising — the screw flights compress and blend the melt with any colourants, fillers or stabilisers.
  4. Screening — a breaker plate removes unmelted particles and evens out pressure before the die.
  5. Shaping — the melt is forced through a die whose interior matches the desired profile.
  6. Cooling — water baths chill pipe and cable while air knives or chill rolls cool film and sheet; even cooling prevents warping.
  7. Haul-off & cutting — a puller grips the solidified strand at constant speed and a cutter trims it to length.

Inside the Screw: Feed, Compression & Metering Zones

An extruder screw is divided into three functional zones along its length. In the feed zone, deep flights convey cool pellets away from the hopper. In the compression (transition) zone, the flight depth shrinks, squeezing out trapped air and generating the shear heat that melts the polymer. In the metering zone, shallow flights build uniform pressure so the melt leaves the screw at a steady rate.

How well those zones work depends on screw geometry. A longer screw — a higher L/D ratio — gives the melt more residence time for better mixing and a more stable temperature, while the compression ratio is matched to the polymer. Getting this right is central to selecting the right screw and barrel for a given material and output.

Single-Screw vs Twin-Screw Extruders

The two extruder families suit different jobs. Single-screw machines are simple and economical and handle most straightforward extrusion. Twin-screw machines add intermeshing screws for aggressive mixing, which is why they dominate compounding.

Feature Single-screw Twin-screw
Design One rotating screw inside a barrel Two intermeshing screws (co-rotating or counter-rotating)
Complexity Simple, low-cost, easy to maintain More complex, higher upfront cost
Mixing power Suitable for most thermoplastics High-shear mixing, ideal for compounds and fillers
Best use Pipe, sheet, profile and cable insulation Compounding, masterbatch and reactive extrusion

For cable work specifically, our single-screw vs twin-screw comparison explains why a single-screw line usually suffices for the extrusion itself, while twin-screw machines are better for the upstream compounding stage.

Cooling, Haul-Off & Quality Control

The downstream section decides final quality. Cooling must be even so the profile does not warp or develop internal stress. The haul-off sets line speed and draw-down, which together fix wall thickness. On a cable line, holding the conductor perfectly centred is critical — concentricity directly affects electrical performance and material cost.

Modern lines verify dimensions continuously with in-line laser gauges rather than spot-checking at the end, so a drift in diameter or wall is caught and corrected before scrap is made. This is standard on precision work such as medical tubing extrusion lines, where wall tolerances are measured in microns.

Common Applications of Plastic Extrusion

Extrusion’s versatility puts it in nearly every sector:

  • Wire & cable — insulation and sheathing on power, building and control cables
  • Construction — pipe, conduit and window-profile systems
  • Medical — catheter and fluid-delivery tubing with precise, sterile walls
  • Automotive — trims, seals and under-body shields at high volume
  • Energy — UV-stable profiles and jacketing for solar and renewable installations
Wire and cable extrusion line production hall in India

At Sai Extrumech, we build custom cable extrusion lines and the screws, barrels and crossheads that go with them, engineered around your conductor size, polymer and output rate. Because the line is designed for your exact product, you avoid the mismatched components and long change-overs that slow a generic machine.

Frequently Asked Questions

What is the plastic extrusion process?

The plastic extrusion process melts thermoplastic pellets and forces the molten polymer through a shaped die to form a continuous profile with a fixed cross-section, such as pipe, sheet, film or cable insulation. The strand is then cooled, pulled at a set speed and cut to length.

What are the main steps of plastic extrusion?

The main steps are feeding pellets from a hopper, melting them in a heated barrel, mixing and homogenising the melt with a rotating screw, filtering it through a breaker plate, shaping it in a die, cooling the profile, and hauling off and cutting the finished product.

What is the difference between single-screw and twin-screw extruders?

A single-screw extruder uses one screw and is simple and cost-effective for most extrusion. A twin-screw extruder uses two intermeshing screws for far stronger mixing, making it the choice for compounding, fillers and additives.

What role does the L/D ratio play in extrusion?

The L/D ratio (barrel length to screw diameter) sets how long the polymer stays in the barrel. A higher L/D gives more residence time, improving melting and mixing, but can limit throughput. Cable extrusion typically uses 25:1 to 30:1.

What materials can be extruded?

Common extruded thermoplastics include PVC, PE (HDPE/LDPE), PP, ABS, nylon, PEBA and TPU. The right polymer depends on the required temperature resistance, strength, flexibility and chemical resistance.

How is extrusion quality measured?

Quality is judged by dimensional tolerance, wall-thickness uniformity, concentricity, surface finish and mechanical tests such as tensile and burst strength. Modern lines use in-line laser gauges to verify dimensions continuously.

Conclusion

The plastic extrusion process is deceptively simple to describe — melt, shape, cool, pull — but consistent quality lives in the details: screw geometry, temperature control, even cooling and continuous measurement. If you are planning a wire, cable or specialty line, talk to our engineers and we will map the right configuration to your production goals.
