THN/LAN Cable

Introduction

THN/LAN cable extrusion lines cover two high-speed, thin-wall product families: nylon-jacketed building wire (THHN/THWN), where a tough nylon layer is applied over PVC insulation, and LAN data cables (Cat5e/Cat6), where solid HDPE or foam-skin insulation is extruded over fine copper conductors to extremely tight tolerances that determine the cable's electrical performance.

For LAN cable, even small variations in insulation diameter shift the impedance and degrade signal integrity, so these lines pair a high-speed precision extruder with laser diameter gauges and capacitance monitoring for closed-loop control, running at high line speeds with rapid cooling. For THHN, a tandem setup extrudes PVC insulation followed by a thin nylon (PA) jacket in line, with screw geometry chosen to handle the hygroscopic, fast-processing nylon.

Applications:

  • Cat5e/Cat6 LAN and structured-cabling data cables
  • THHN/THWN nylon-jacketed building and panel wire
  • High-speed networking and automotive wiring

Why Sai Extrumech: We supply the precision tooling and closed-loop diameter control these thin-wall, high-speed products demand to stay within electrical and dimensional spec.

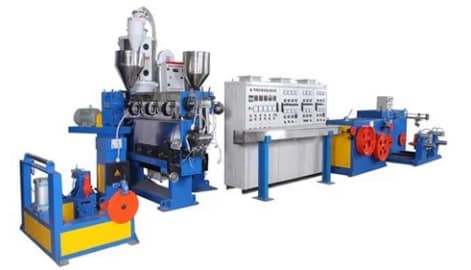

Extr- line building wire

FAQS

What is an extrusion line for wire and cable?

 An extrusion line for wire and cable is a manufacturing system designed to produce high-quality wire and cable products. It typically involves feeding raw materials into an extruder, which melts and shapes them into the desired wire or cable form through a die.

What types of wire can be made in SAI’s extrusion line?
  • Extr line – Building wire
  • Industrial cable
  • Submersible cable
  • Power cable
  • Optical fibre cable
  • THN/LAN Cable
  • Solar cable
  • Sioplas cable
  • Tandum cable
What are the key components of an extrusion line for wire and cable?

The key components of an extrusion line include:

  • Extruder
  • Cooling Trough
  • Take-Up and payoff.
  • Control System
  • Capstan
Can Sai Extrumech customize extrusion lines for specific requirements?

Yes, Sai Extrumech offers customized extrusion lines tailored to meet specific customer requirements. We work closely with our clients to understand their needs and design solutions that optimize performance and efficiency.

What are the benefits of using Sai Extrumech's extrusion lines for wire and cable?

Benefits include:

  • High precision and efficiency.
  • Affordable units with excellent quality
  • Customizable solutions to meet specific needs.
  • Expert technical support and service.
