Plastic extrusion turns tiny pellets into long, uniform shapes that power everything from power cables to kitchen cabinets. Below we break down the definition, the machinery, the step‑by‑step flow, and where the process adds real value.
What Is Plastic Extrusion?
In plain terms, plastic extrusion is a manufacturing method that forces melted thermoplastic through a shaped die to create a continuous profile with a fixed cross‑section. The process can handle PVC, HDPE, ABS, and many other polymers, letting engineers pick the material that fits the job’s temperature, strength, and chemical‑resistance needs.
Because the melt stays fluid only for seconds, the equipment must heat, mix, and pressurise the plastic precisely. A single‑screw extruder does this in a simple, low‑cost design, while a twin‑screw version adds extra mixing power for compounds that contain fillers or flame‑retardants.
For a quick visual, see Wikipedia’s overview of extrusion, which sketches the basic feed‑to‑die flow.
Our partner Sai Extrumech Pvt. Ltd. builds custom cable extrusion lines that embed this core idea in a turnkey package , a usable route for plant managers who need a ready‑to‑run solution.
Key Components of an Extrusion Line
Every line shares a handful of core parts. The hopper stores raw pellets and feeds them by gravity. Inside the barrel, a rotating screw (or twin screws) moves the material forward while heating zones melt it. A screen pack or breaker plate filters out contaminants before the melt reaches the die. The die shapes the melt, and a cooling system, water bath for pipes or air knives for films, solidifies the profile. Finally, a haul‑off unit pulls the solid product at a set speed and a cutter chops it to length.
When you need deeper insight on wear, Screw Wear in Extrusion : Causes, Symptoms, and Prevention explains how tiny gaps and abrasive fillers can erode the screw over time.
Watch the short video below for a visual walk‑through of these components in action.
Modern lines often include a belt‑type haul‑off, which grips the extrudate with rubber belts and draws it forward without stretching. This unit controls line speed, draw‑down ratio, and ultimately the wall thickness of the final product.
The Extrusion Process Step‑by‑Step
1. Feeding: Pellets drop from the hopper into the feed zone of the screw. Gravity and the screw’s rotation push them forward.
2. Melting: As the material moves into the heating zones, the barrel walls and friction heat melt it. Precise temperature control avoids degradation.
3. Mixing & Homogenising: The screw’s flights compress the melt, blending any colourants, fillers, or stabilisers. Twin‑screw machines can mix more aggressively.
4. Screening: A breaker plate strips out unmelted particles and ensures a uniform pressure before the die.

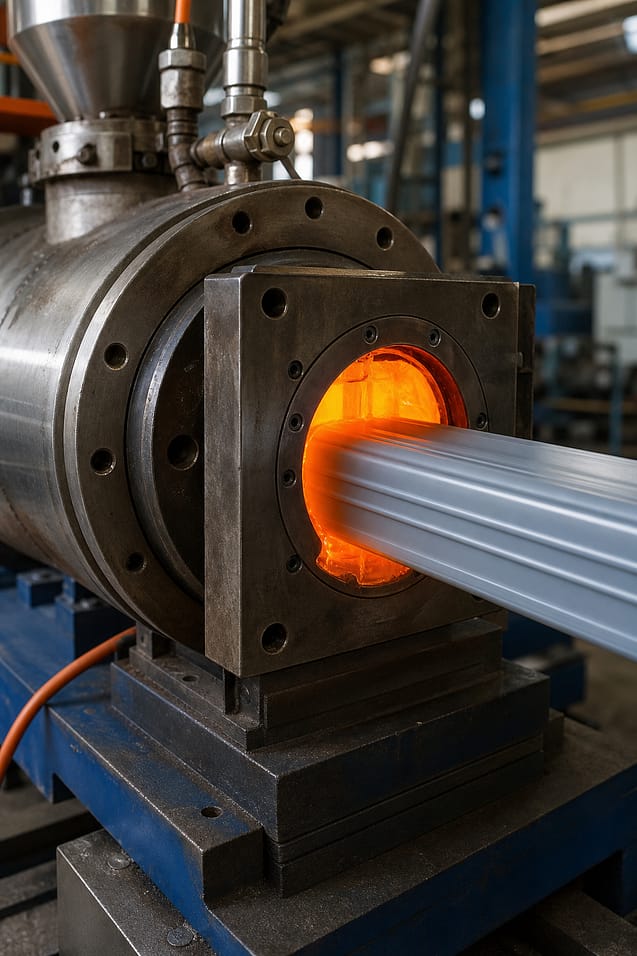

5. Shaping: The melt is forced through a die whose interior matches the desired profile , pipe, sheet, or complex window‑frame shape.
6. Cooling: Water baths chill pipes, while air knives or chill rolls cool films and sheets. Rapid, even cooling prevents warping.
7. Haul‑off & Cutting: A puller grabs the solidified strand at a constant speed, and a cutter trims it to length.
By now you should have a clear picture of each stage and the equipment that makes it happen.
Types of Extruders: Single‑Screw vs Twin‑Screw
For cable‑specific work, Sai Extrumech’s comparison guide shows why a single‑screw line often suffices for extrusion itself, while twin‑screw machines are better suited for the upstream compounding stage.
Choosing the right screw geometry also matters. What is L/D Ratio in an Extruder? explains how a longer screw (higher L/D) gives more residence time, improving melt homogeneity and reducing temperature spikes.
Common Applications and Industry Use Cases
Extrusion’s versatility drives its presence in many sectors. In construction, pipe and conduit profiles transport water, gas, and electrical wiring. In automotive, lightweight interior trims and under‑body shields are made by extrusion because the process offers tight dimensional control at high volume.
Medical devices rely on extrusion for clear tubing, catheters, and fluid‑delivery systems where sterility and precise wall thickness are non‑negotiable. The lighting industry uses extruded channels to house LED strips, protecting them from moisture while allowing easy mounting.
Energy‑sector installations need UV‑stable, weather‑proof mounts for solar panels , an extrusion‑made solution that balances strength with low weight.
Our client Sai Extrumech’s Custom Cable Extrusion Line targets the wire, cable, and pipe market specifically. The line includes a pre‑engineered crosshead, a calibrated haul‑off, and a full spare‑parts inventory, reducing downtime for plant managers who cannot afford long change‑over periods.
For a broader view of how the process supports sustainability, see ISO’s standard on recycled‑content extrusion, which outlines guidelines for incorporating reclaimed polymers without compromising product quality.
FAQ
What is the main purpose of plastic extrusion?
The main purpose is to turn raw thermoplastic pellets into a continuous shape with a uniform cross‑section, such as pipe, sheet, or cable.
Can extrusion be used for metal alloys?
No, extrusion in the context of this guide refers to thermoplastic polymers; metal extrusion uses a different set of machines and temperatures.
How does a twin‑screw extruder differ from a single‑screw one?
A twin‑screw extruder uses two intermeshing screws, providing higher torque and better mixing, which is useful for compounds with fillers or additives.
What role does the L/D ratio play?
The L/D ratio (length‑to‑diameter) determines how long the material stays in the barrel; a higher ratio improves melting and mixing but can reduce throughput speed.
Why choose a custom cable extrusion line?
A custom line is designed for the exact wire size, material, and output rate you need, cutting engineering time and reducing risk of mismatched components.
Is there a standard way to measure extrusion quality?
Quality is typically measured by dimensional tolerance, wall‑thickness uniformity, surface finish, and mechanical testing such as tensile strength.
