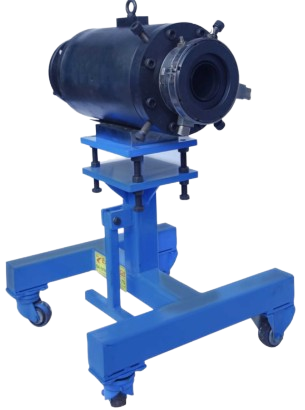

Manual Center Crosshead

Introduction

The Manual Center Crosshead by Sai Extrumech offers flexible centering options, making it an ideal choice for processes requiring frequent adjustments to tube dimensions. This crosshead provides operators with precise control over material distribution, ensuring optimal performance and product quality.

Features

  • Manual Adjustment: Allows operators to easily modify centering for varying tube sizes and designs.
  • Robust Construction: Engineered for long-lasting durability and reliable performance.
  • Wide Compatibility: Suitable for various tubing materials, including PVC, PU, and TPE.
  • Compact Design: Enables easy handling and maintenance.

Applications

  • Custom Medical Tubing: Multi-lumen and co-extruded designs.
  • Specialized Automotive Tubes: Brake and fuel line variants.
  • Industrial Applications: Tubes with complex dimensional requirements.

Sai Extrumech’s Manual Center Crosshead provides the flexibility needed for dynamic production environments.

Manual Center Crossheads

Specs:

Cross HeadsMax Tip/Conductor SizeMax Die/Wire SizeSkinStrip
Sai 6/106mm / 0.25010mm / 0.400✅✅
Sai 10/2010mm / 0.40020mm / 0.800✅✅
Sai 20/3020mm / 0.80030mm / 1.125✅✅
Sai 30/4030mm / 1.12540mm / 1.500✅✅
Sai 40/6040mm / 1.50060mm / 2.500✅✅
Sai 60/8060mm / 2.50080mm / 3.125✅✅
Sai 80/10080mm / 3.125100mm / 3.400✅✅
Sai 100/120100mm / 3.400120mm / 4.725✅✅
Sai 120/140120mm / 4.725140mm / 5.500✅✅

FAQS

What is a crosshead in extrusion processes?

A crosshead is a crucial component in extrusion processes, used to direct the flow of molten material around a core to form a specific shape. It ensures uniform coating and precise dimensions in the extruded product.



What types of crossheads does Sai Extrumech offer?

Sai Extrumech offers a variety of crossheads, including those for:

  • Fixed center crosshead
  • Manual centre
  • In Line head
  • Tube head
  • Extruder tooling
  • Spare parts
What materials can be processed using Sai Extrumech's crossheads?

Our crossheads are designed to process a wide range of materials, including various polymers like PVC, PE, XLPE, and more. The choice of material depends on your specific application and requirements.

How do I choose the right crosshead for my application?

Choosing the right crosshead depends on the specific requirements of your application, such as the material being extruded, the desired shape and dimensions, and the production speed. Our experts at Sai Extrumech can help you select the best crosshead for your needs.
