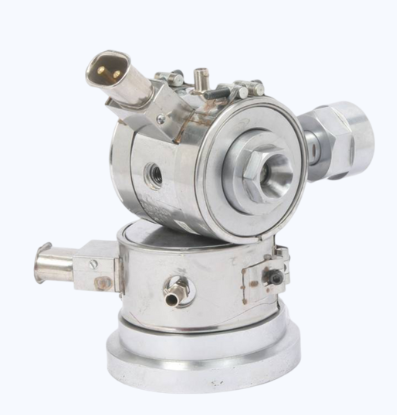

Fixed Center Crosshead

Introduction

Sai Extrumech's Fixed Center Crosshead is engineered for precision and stability, making it ideal for applications where maintaining consistent material distribution is critical. This crosshead is designed with a fixed center alignment, ensuring reliable performance and exceptional product quality.

Features

  • Stable and Precise: Fixed center design eliminates deviations, ensuring uniform material flow.
  • Durable Build: Made from high-grade materials to withstand rigorous production conditions.
  • Versatile Applications: Supports both single-layer and multi-layer extrusion processes.
  • Optimized Flow Channels: Reduces material stress and enhances the extrusion quality.

Applications

  • Medical Tubing: Catheters, IV lines, and feeding tubes.
  • Automotive Tubing: Brake lines and fuel hoses.
  • Industrial Tubing: General-purpose and pneumatic tubing.

Sai Extrumech’s Fixed Center Crosshead delivers unparalleled stability, ensuring consistent and precise output across all applications.

Specs:

Cross HeadsMax Tip/Conductor SizeMax Die/Wire SizeSingle LayerSkinStripTriple Layer
Sai 4/64mm/0.1606mm/0.250✅✅✅✅
Sai 8/148mm/0.32514mm/0.555✅✅✅
Sai 15/1815mm/0.59018mm/0.700✅✅✅
Sai 16/2016mm/0.65020mm/0.800✅✅✅
Sai 25/3525mm/1.00035mm/1.375✅✅✅
Sai 35/4535mm/1.37545mm/1.177✅✅✅
Sai 60/8060mm/2.36380mm/3.125✅✅✅
Sai 80/10080mm/3.125100mm/4.000✅✅✅

FAQS

What is a crosshead in extrusion processes?

A crosshead is a crucial component in extrusion processes, used to direct the flow of molten material around a core to form a specific shape. It ensures uniform coating and precise dimensions in the extruded product.



What types of crossheads does Sai Extrumech offer?

Sai Extrumech offers a variety of crossheads, including those for:

  • Fixed center crosshead
  • Manual centre
  • In Line head
  • Tube head
  • Extruder tooling
  • Spare parts
What materials can be processed using Sai Extrumech's crossheads?

Our crossheads are designed to process a wide range of materials, including various polymers like PVC, PE, XLPE, and more. The choice of material depends on your specific application and requirements.

How do I choose the right crosshead for my application?

Choosing the right crosshead depends on the specific requirements of your application, such as the material being extruded, the desired shape and dimensions, and the production speed. Our experts at Sai Extrumech can help you select the best crosshead for your needs.
